User Guide

Welcome to the Trace2Gather User Guide. Trace2Gather is a desktop app for managing hotel rooms and guests, optimised for use via a Command Line Interface (CLI), while still having the benefits of a Graphical User Interface (GUI). Our application aims to complement existing contact tracing efforts, while also helping you to manage your hotel guests fast.

The purpose of this user guide is to help you explore Trace2Gather’s many features and how to use them.

If you require assistance using this guide, please feel free to visit the Navigation Guide for more information.

Table Of Contents

• Navigation Guide
• Quick Start
• Features
  • Viewing help : help
  • Guests
    • Adding a guest: add
    • Listing all guests : list guests
    • Editing a guest : edit
    • Locating guests by name: guest
  • Rooms
    • Adding rooms : addroom
    • Checking into a room : checkin
    • Checking out of a room : checkout
    • Locating a specific room : room
    • Listing all rooms : list rooms
    • Listing all occupied rooms : list rooms occupied
    • Listing all vacant rooms : list rooms vacant
  • Records
    • Listing all records : list records
    • Locating specific records: record
  • Database / Storage
    • Clearing all entries : clear
    • Exiting the program : exit
    • Saving the data
    • Editing the data file
• Frequently Asked Questions (FAQ)
• Command Summary

Navigation Guide

Before we guide you through our application’s features, please visit the Quick Start section to ensure our application can run on your device.

After you are done setting up, check out the Features section to explore the various features our application offers, and how to use them.

If you would like a quick overview of all available commands, check out the Command Summary.

If you have any questions, they may be answered in the Frequently Asked Questions (FAQ) section.

Quick Start

This section will help you get our application running on your device, step by step.

1. Ensure you have Java 11 or above installed in your Computer.

2. Download the latest trace2gather.jar from here.

3. Copy the file to the folder you want to use as the home folder for Trace2Gather.

4. Double-click the file to start the application. The GUI below should appear in a few seconds, and will look like the screenshot below. Do note that the application contains some sample data for your convenience.


5. Type a command in the command box (shown in the screenshot below) and press Enter to execute it. For example, typing list guests and pressing Enter will show the UI below.
   Some example commands you can try are the following:

   • list guests : Lists all guests.

   • addroom 5 t/typeA : Adds 5 rooms of type A to the room list.

   • add n/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01 id/S98765432H : Adds a contact named John Doe to the Trace2Gather.

   • checkin 5 g/1: Checks in the 1st guest into the 5th room in the room list.

   • clear : Deletes all rooms, guests and past records.

   • exit : Exits the app.

6. Refer to the Features section below for details of each command.

Features

This section showcases all our application’s features. Each feature has its own sub-section, with formats and examples for clarity.

Viewing help : help

Shows a message explaining how to access the help page.

Format: help

Guests

Adding a guest: add

Adds a guest to Trace2Gather.

Format: add n/NAME p/PHONE_NUMBER e/EMAIL a/ADDRESS id/ID [t/TAG]…​

Acceptable format for keywords:

1. Names: No special characters, but spaces are allowed. No longer than 50 characters.
2. Phone Number: Digits only and at least 3 digits long.
3. Email: Must follow the format of xxx@yyy.zzz.

4. Address: Special characters such as # are allowed. Field must not be blank.
5. Id: Accommodates for international guests who may have longer identification numbers and/or special characters. It must not be empty and it must be no longer than 50 characters. It is case-insensitive.
6. Tags: No whitespaces within a tag.

Examples:

• add n/John Doe p/98765432 e/johnd@example.com a/John street, block 123, #01-01 id/S98765432G
• add n/Betsy Crowe t/Quarantine e/betsycrowe@example.com a/Crowe Lane id/S98765431G p/1234567 t/SeafoodAllergy

Listing all guests : list guests

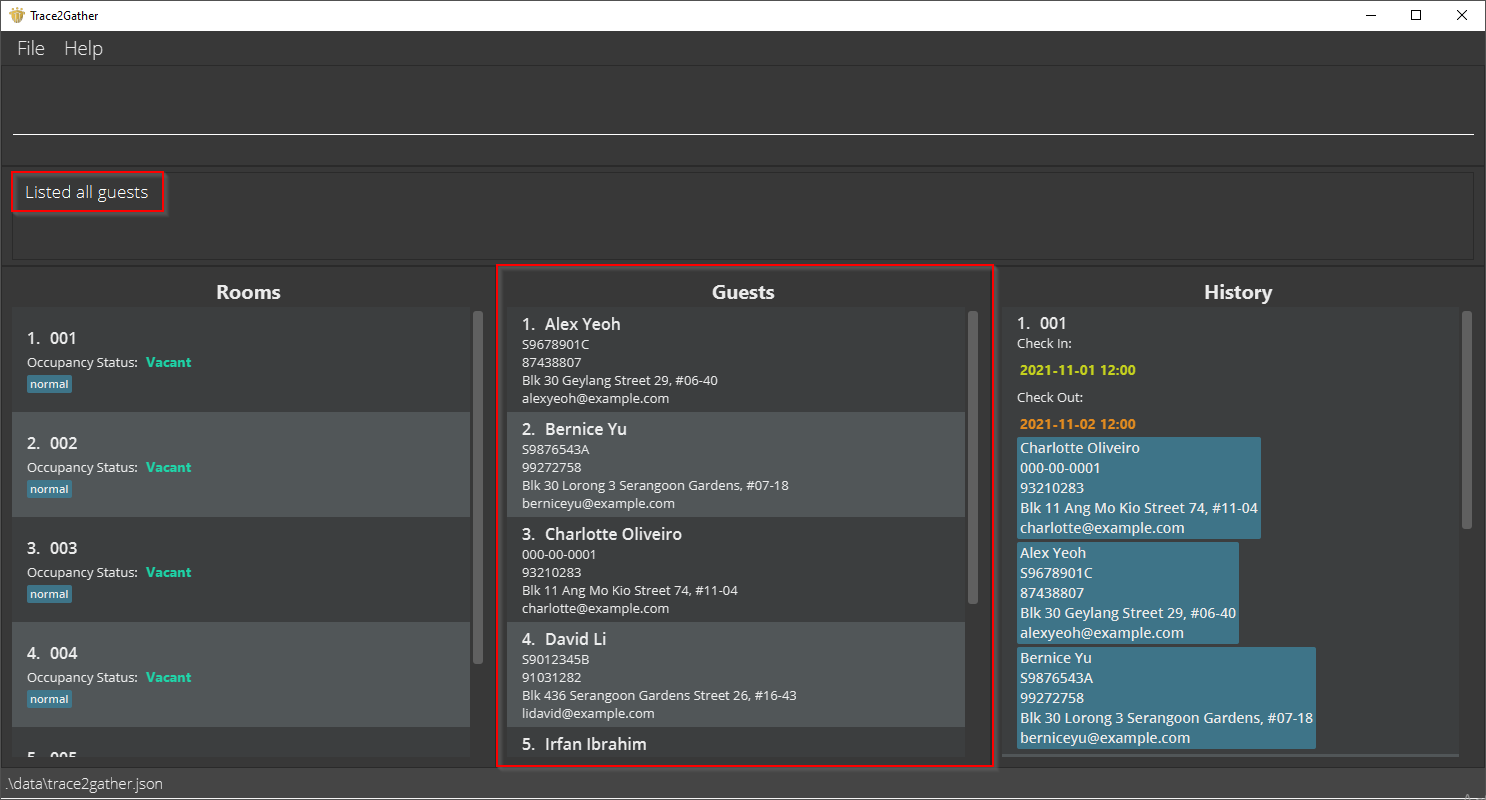

Shows a list of all guests in Trace2Gather. If you were searching for a guest earlier using the guest command, using list guests would yield you the full list of guests, and it would be displayed in the Guests panel. This is illustrated in the screenshot below after the execution of the list guests command.

Format: list guests

Editing a guest : edit

Edits an existing guest in Trace2Gather.

Format: edit INDEX [n/NAME] [p/PHONE] [e/EMAIL] [a/ADDRESS] [id/ID] [t/TAG]…​

• Edits the guest at the specified INDEX. The index refers to the index number shown in the displayed guest list. The index must be a positive integer 1, 2, 3, …​
• At least one of the optional fields must be provided.
• Existing values will be updated to the input values.
• When editing tags, the existing tags of the guest will be removed, That is, the addition of tags is not cumulative.
• You can remove all the guest’s tags by typing t/ without specifying any tags after it.

Acceptable format for keywords:

1. Names: No special characters, but spaces are allowed. No longer than 50 characters.
2. Phone Number: Digits only, and at least 3 digits long.
3. Email: Must follow the format of xxx@yyy.zzz.

4. Address: Special characters like # are allowed for address purposes, must not be blank.
5. Id: Accommodates for international guests who may have longer identification numbers and/or special characters. Must not be an empty string, and there is a 50-character limit on the length.
6. Tags: No whitespaces within a tag.

Examples:

• edit 1 p/91234567 e/johndoe@example.com Edits the phone number and email address of the 1st guest to be 91234567 and johndoe@example.com respectively.
• edit 2 n/Betsy Crower t/ Edits the name of the 2nd guest to be Betsy Crower and clears all existing tags.

Locating guests by name: guest

Find guests whose names contain any of the given keywords.

Format: guest KEYWORD [MORE_KEYWORDS]

• The search is case-insensitive. For example, hans will return you Hans.
• The order of the keywords does not matter. For example, Hans Bo will match Bo Hans.
• Only the name is searched.
• Guests matching at least one keyword will be returned (i.e. OR search). For example, Hans Bo will return Hans Gruber, Bo Yang.

Examples:

• guest John returns john and John Doe
• guest alex david returns Alex Yeoh, David Li

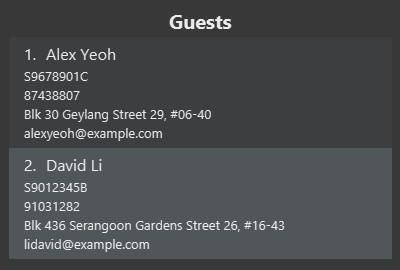

The image below is an example of how part of the application interface may look when the command guest alex david is executed.

Rooms

Adding rooms : addroom

Adds the specified number of rooms with the specified tag(s).

Format: addroom NUMBER_OF_ROOMS t/tag [t/tag]...

• Adds the specified NUMBER_OF_ROOMS of type tag to the list of rooms.
• The specified number of rooms must be a positive integer. That is, 1, 2, 3, …​
• The full list of rooms will be shown after rooms have been added.
• Note: There should be no whitespace within a tag.

Examples:

• addroom 5 t/typeA
• addroom 10 t/typeB t/reserved

Checking into a room : checkin

Checks in guest(s) into a room.

Format: checkin ROOM_INDEX g/GUEST_INDEX [g/GUEST_INDEX]...

The indices refer to the index numbers shown in the numbered guest/room list.

Examples:

• checkin 5 g/1
• checkin 1 g/2

The image below is an example of how part of the application interface looks when the command checkin 3 g/2 g/3 g/6 is executed.

Checking out of a room : checkout

Checks out the guest(s) from a room.

Format: checkout ROOM_INDEX

The room index refers to the index number shown in the displayed room list.

Example:

• checkout 5
• checkout 7

The image below is an example of how part of the application interface looks when the command checkout 4 is executed.

Locating a specific room : room

Shows a list of rooms that match the room number(s) provided. Room numbers should have 3 digits.

Format: room ROOM_NUMBER [MORE_ROOM_NUMBERS]

Example:

• room 005 010
• room 003

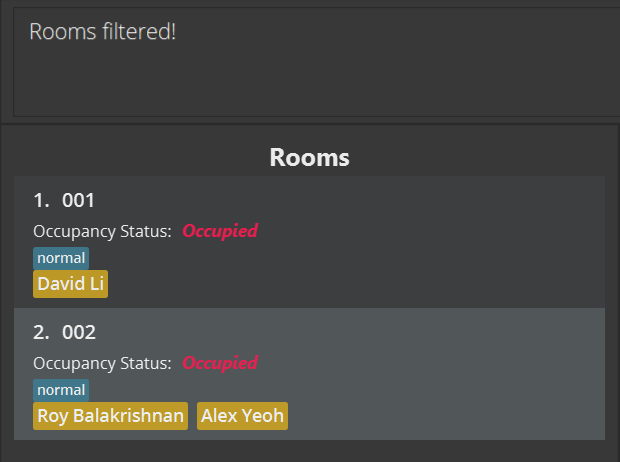

The image below is an example of how part of the application interface looks when the command room 001 002 is executed.

Listing all rooms : list rooms

Shows the list of all rooms in Trace2Gather. If you were searching for a room using the room command earlier, using list rooms would yield you the full list of rooms, and it would be displayed in the Rooms panel. This is illustrated in the screenshot below after the execution of the list rooms command.

Format: list rooms

Listing all occupied rooms : list rooms occupied

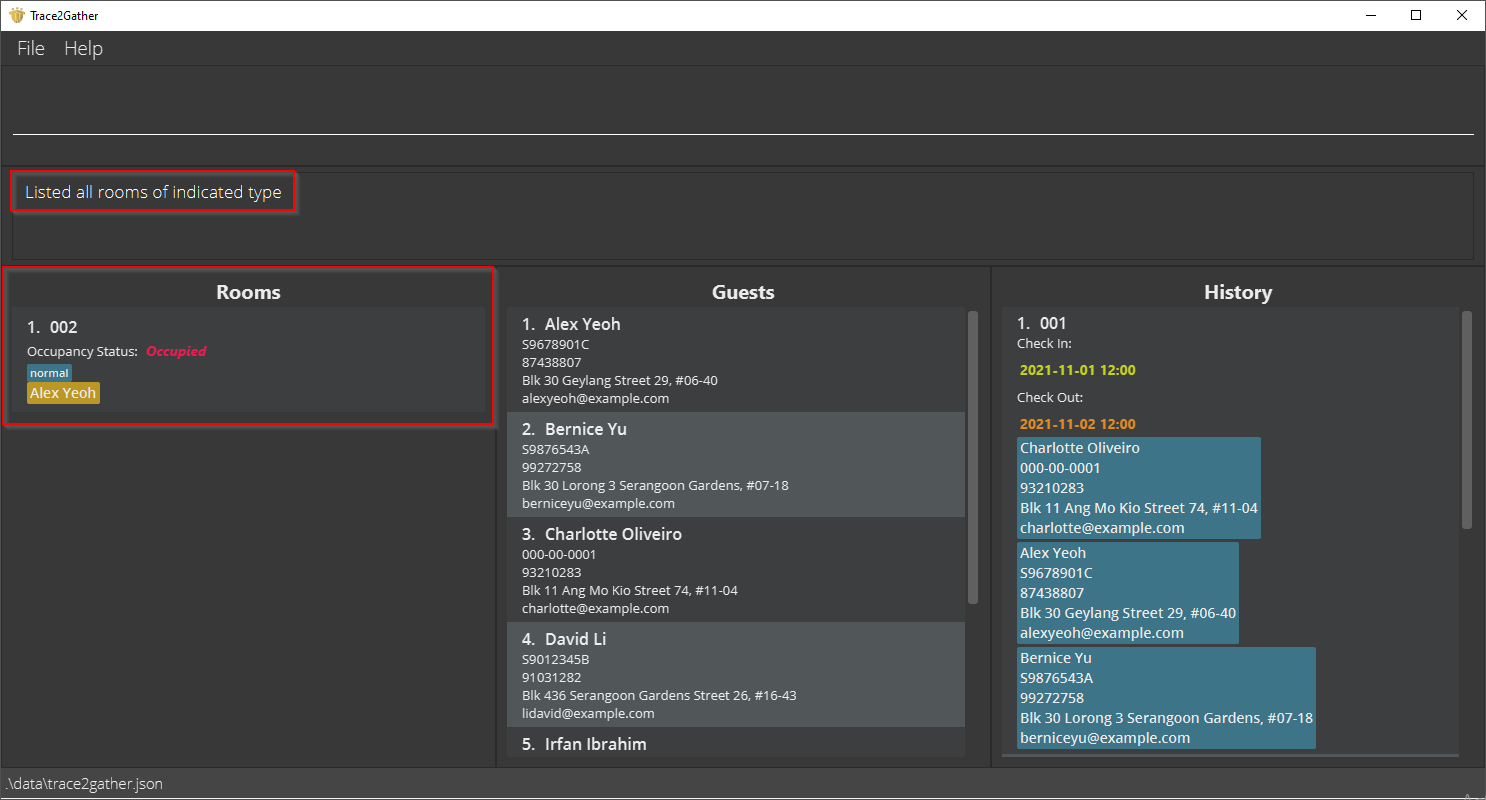

Shows the list of all rooms that are occupied in Trace2Gather. The image below illustrates a possible example of what you could see after executing the command. Only Room 002 was occupied, so list rooms occupied returns only Room 002, leaving out the rest of the vacant rooms.

Format: list rooms occupied

Listing all vacant rooms : list rooms vacant

Shows the list of all rooms that are vacant in Trace2Gather. The image below illustrates a possible example of what you could see after executing the command. Room 002 was occupied, so list rooms vacant does not display Room 002, but displays all other vacant rooms.

Format: list rooms vacant

Records

Listing all records : list records

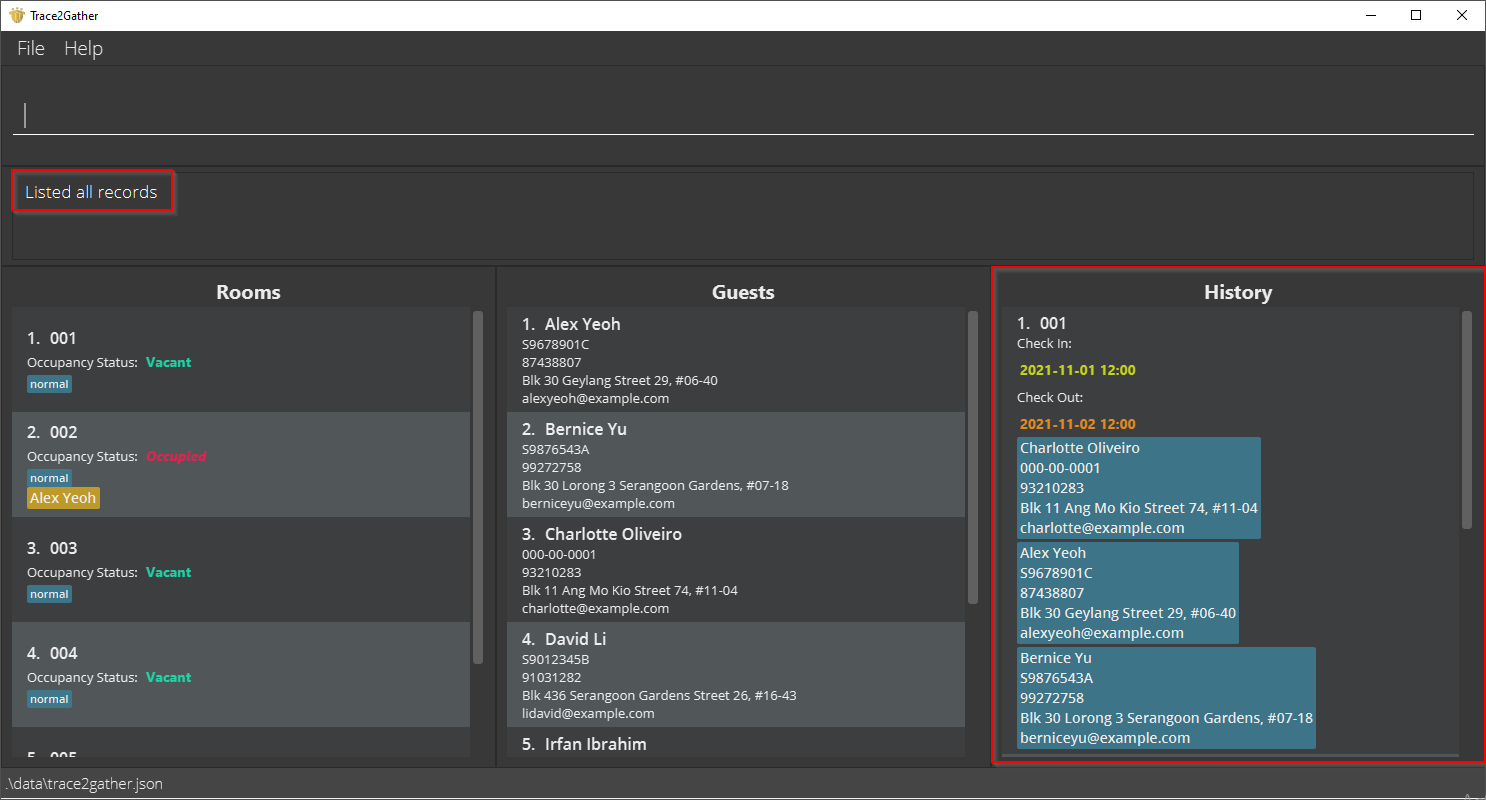

Shows the list of past residencies in Trace2Gather. If you were searching for a record earlier using the record command, using list records would yield you the full list of records, and it would be displayed in the History panel. This is illustrated in the screenshot below after the execution of the list records command.

Format: list records

Locating specific records: record

Shows the records that match all the keywords provided. Case-insensitive, and at least 1 keyword must be entered.

Format: record KEYWORD [MORE KEYWORDS]...

The following fields are what you can use to search for a record:

1. Guest Name
2. Guest Id
3. Guest Phone Number
4. Guest Address
5. Guest Email
6. Guest Tags
7. Room Number
8. Checkin Time
9. Checkout Time

Acceptable formats for keywords:

1. Dates of stay: YYYY-MM-DD.
2. Names: No special characters, but spaces are allowed.
3. Room Numbers: must be in its 3-digit format. For example, 001, 233, 999.


Example:
record Alex shows the residencies Alex had in the past.
record 001 shows the residencies Room 001 had in the past.
record Alex 001 shows the residencies that involve Alex staying in Room 001 in the past.
record Alex Bernice shows the residencies Alex and Bernice had together in the past.
record 2021-10-31 shows the past residences that include the specified date (both checkin and checkout included).

Database / Storage

Clearing all entries : clear

Clears all entries from Trace2Gather.

Format: clear

Exiting the program : exit

Exits the program.

Format: exit

Saving the data

Trace2Gather data is saved in the hard disk automatically after any command that changes the data is executed. There is no need to save manually.

Editing the data file

Trace2Gather data is saved as a JSON file [JAR file location]/data/trace2gather.json. Advanced users are welcome to update the data directly by editing the JSON file.

Frequently Asked Questions (FAQ)

We understand that you might have questions regarding our application. Below are some common questions we have been asked.

Q: How do I transfer my data to another Computer?
A: Install the app in the other computer and overwrite the empty data file it creates with the file that contains the data of your previous Trace2Gather home folder.

Q: Why does my edit / checkin / checkout command not work?
A: The indices required by these commands are the ones from the numbered list seen in the GUI. You can try using one or more of the list commands to show all available data and make sure you have the correct indices.

Q: Why does our application’s logo look very similar to TraceTogether’s logo?
A: Our application’s purpose was driven with the intention to complement TraceTogether and thus we decided to be faithful to the logo used. The difference in colour scheme is a nod to the contributors who made AB3, the original source code we based our application off from, as AB3’s logo was brown in colour.

Q: How do I know if my application is not responding?
A: Please try to use your computer’s task manager, such as Window’s Task Manager, to check that the application is running.

Q: I would like to use your application’s codebase to develop my product. Is that alright with you?
A: Yes, please feel free to use our code base! Just remember that our application was built off AB3’s code base found here. Thus, please do remember to acknowledge the developers behind the code base.

Command Summary

Action	Format, Examples
Add	add n/NAME p/PHONE_NUMBER e/EMAIL a/ADDRESS id/ID [t/TAG]…​ Example: add n/James Ho p/22224444 e/jamesho@example.com a/123, Clementi Rd, 1234665 id/S9943233F t/friend t/colleague
Addroom	addroom NUMBER_OF_ROOMS t/tag [t/tag]... Example: addroom 5 t/typeA
Clear	clear
Checkin	checkin ROOM_INDEX g/GUEST_INDEX [g/GUEST_INDEX]... Example: checkin 5 g/1
Checkout	checkout ROOM_INDEX Example: checkout 4
Edit	edit INDEX [n/NAME] [p/PHONE_NUMBER] [e/EMAIL] [a/ADDRESS] [id/ID] [t/TAG]…​ Example: edit 2 n/James Lee e/jameslee@example.com
Exit	exit
Guest	guest KEYWORD [MORE_KEYWORDS] Example: guest James Jake
List	list guests, list records, list rooms, list rooms occupied, list rooms vacant
Help	help
Record	record KEYWORD_ONE... Example: record Alex, record 001
Room	room ROOM_NUMBER [MORE_ROOM_NUMBERS] Example: room 001 002
